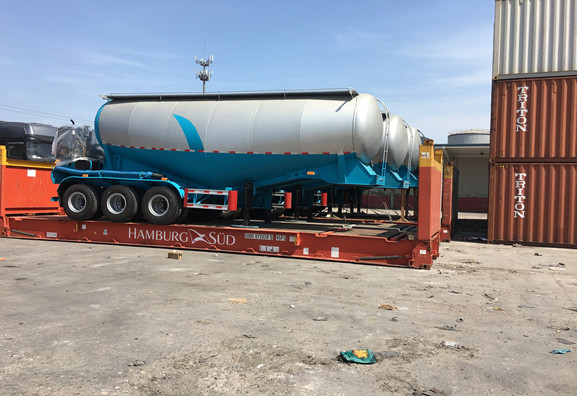

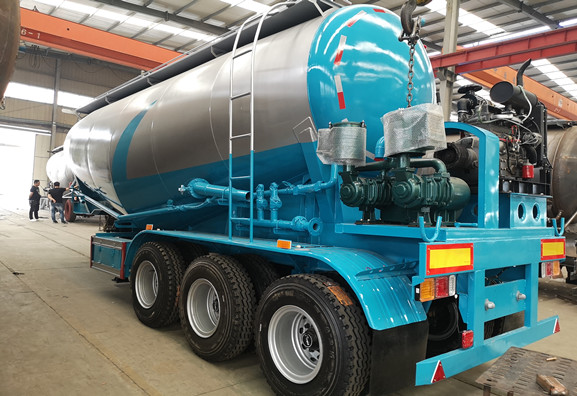

3 Axle 30CBM Cement Trailer

Product Features :

Engine: Located on the back, Weichai 4102

Air Compressor: BOHAI 12m³

Product details

Body/Chassis:
Main chassis: Carbon steel
LoadingCapacity: 30CBM

Tank assembly:
Front/Rear end plate:6mm
Tank body :5mm
Manhole cover :Diameter 500mm*2

Axle:
3 axle*13ton Fuwa

King-pin
50#

Air compressor:
BOHAI 12m3

Engine:
Weichai tianhe 4102,Engine Behind Design

Brake System

40L air tanks
6 double spring brake chamber

Suspension
3 axle Mechanical suspension

Dimensions:
Total length: 8900mm
Total width 2550mm
Total Height: 4000mm

Tires:
11.00R20*12pcs

Rim:
8.0-22.5*12pcs

Spring leaf
Leaf width: 90mm
Leaf thickness: 13mm

Standard Accesspries:
Spare tire carrier*1
LED light

Electricity
Receptacle: 7 ways(7wire harness)and quick change type
Voltage: 24v
