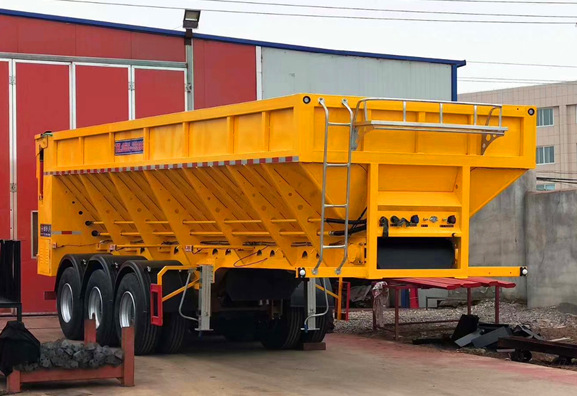

Product name | Asphalt transport tracked trailer | Capacity | 30 cbm |
Size | 11500*2500*3150mm(outer dimensions) | ||
Specification | |||
Axle | 13Tons Fuwa 3 units | Top cover | Equipped Tarpaulin |
Tires | 12R22.5*12 pieces | Lubrication Box | Yes |
Main beam | Height 500mm,bottom plate 14mm, middle 8mm | Hydraulic power | 50tons design |
Rim | 9.0-22.5 | Conveyor belt | 5 pieces as spare accessories |
Suspension | Air suspension with front lifting system | Air bag | Fuwa |
Side beam | 14*6CM, thickness 5mm | Landing Gear | JOST single speed |
Remote control | Equipped | Brake valve | Wabco |
Side board / floor | Carbon steel 5mm thickness | King Pin | JOST 50# |
Color | 3 layer | ABS | WABCO/4S2M |
Notice |
High temperature design complete vehicle Insulation layer add to outside surface |
