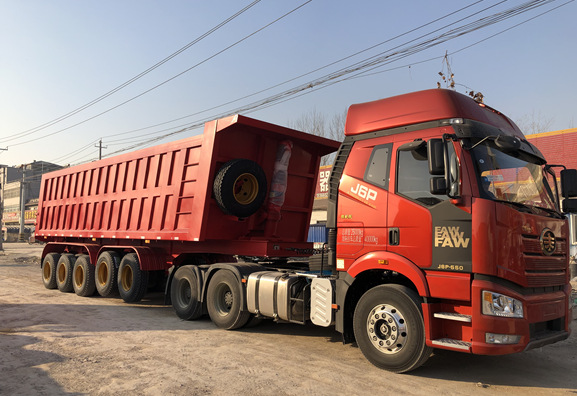

5 Axle 45m3 Dumper Trailer To West African

Product Features :

Start Consulting

Product details

Body/Chassis:

Main chassis: Steel
Tare Weight: 16 tons
Max Payload: 80 tons
Capacity: 45CBM

Main Beam: Q345B
Height:500mm
Top Flange:16mm
Middle Plate:6+6mm double plate
Bottom Flange:18mm

Axle:
5 axle*13ton, with first two axles can
be lifting

King-pin
3.5 inch(90mm)

Landing legs:
Lift capacity 28 ton

Brake System
10 double brake chamber

Suspension
2 axle air suspension+3 axle
Mechanical suspension

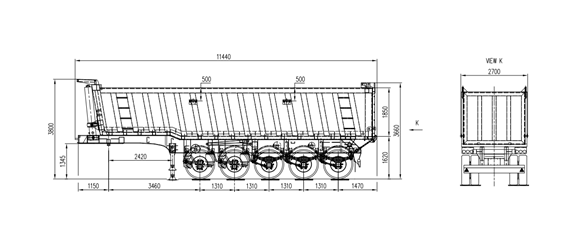

Dimensions:
Total length: 11440mm
Total width 2700mm
Total Height: 3800mm

Tires:
315/80R22.5*20pcs

Rim:
9.0-22.5*20pcs

Dump Box: Q235
Floor: 8mm
Sidewall: 6mm

Standard Accesspries:
Spare tire carrier*2
LED light

Electricity
Receptacle: 7 ways(7wire harness)
and quick change type
Voltage: 24v
