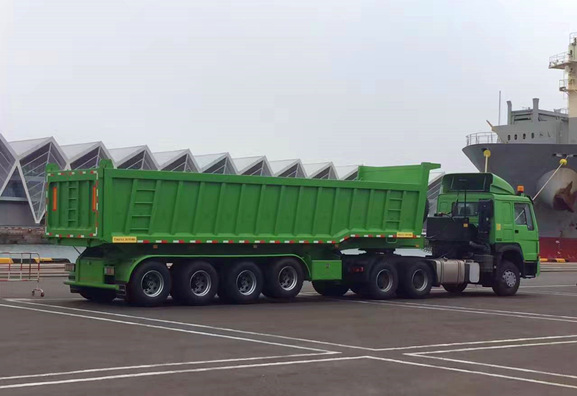

4 Axle Cubic Shape 45m3 Dump Trailer

Product Features :
Tare Weight: 14 tons
Max Payload: 70 tons
Capacity: 40-45CBM

Start Consulting

Product details

Body/Chassis:

Main chassis: Steel
Tare Weight: 14 tons
Max Payload: 70 tons
Capacity: 40-45CBM

Main Beam: Q345B
Height:500mm
Top Flange:16mm
Middle Plate:12mm
Bottom Flange:18mm

Axle:
4 axle*13ton

King-pin
3.5 inch(90mm)

Landing legs:
Lift capacity 28 ton

Brake System
8 double brake chamber

Suspension
1 axle air suspension+3 axle
Mechanical suspension

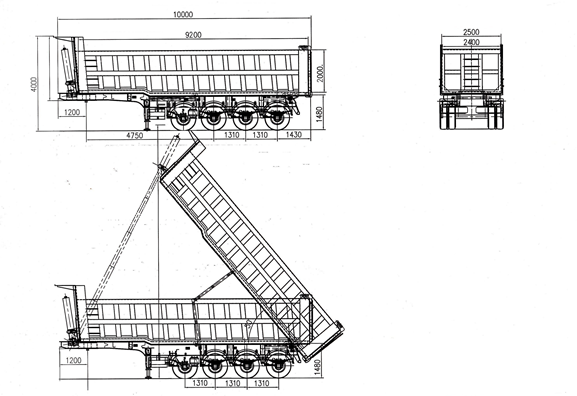

Dimensions:
Total length: 10000mm
Total width 2500mm
Total Height: 3700mm

Tires:
315/80R22.5*16pcs

Rim:
9.0-22.5*16pcs

Dump Box: Q235
Floor: 8mm
Sidewall: 6mm

Standard Accesspries:
Spare tire carrier*2
LED light

Electricity
Receptacle: 7 ways(7wire harness)
and quick change type
Voltage: 24v
