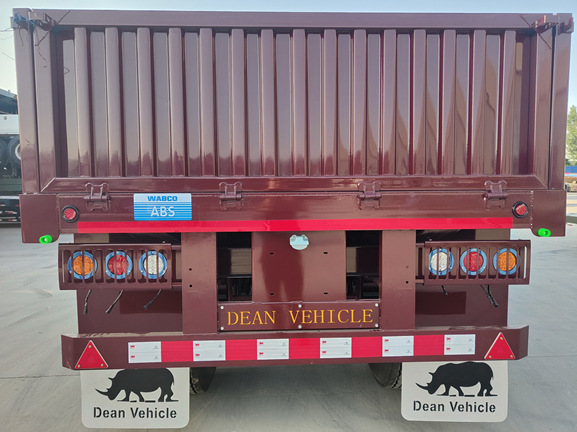

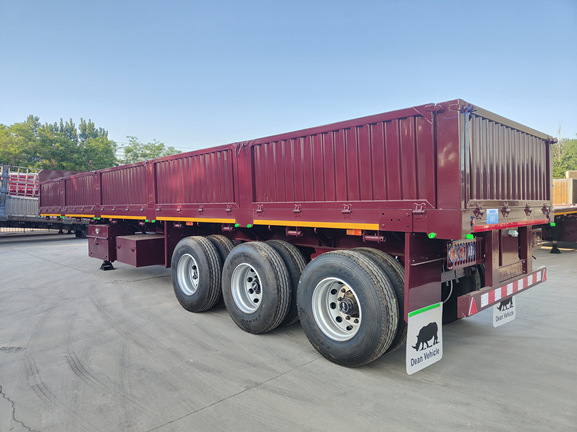

40FT General Cargo Transport Semi Trailer

Product Features :

Sidewall: Removable

Sidewall Thickness: 1.2/1.5/2.0mm optional

Container lock: 12 pcs



Start Consulting
Product details

Body/Chassis:
Main chassis: Steel
Tare Weight: 8.0-8.5 tons
Max Payload:50 tons

Main Beam: Q345B
Height:500mm
Top Flange:14mm
Middle Plate:8mm
Bottom Flange:16mm

Axle:
3 axle*13ton Fuwa

King-pin
2”(50mm) or 3.5”(90mm) JOST Brand

Brake System
6 pcs double brake chamber, WABCO ABS

Suspension
Mechanical Suspension or Air Suspension

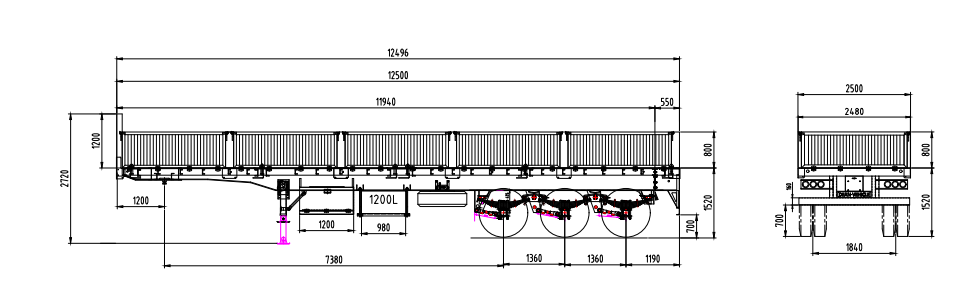

Dimensions:
Total length: 12956mm
Total width 2500mm
Total Height: 2900mm

Tires:
12R22.5*12pcs

Rim:
9.0-22.5*12pcs

Side Wall:

600-1200mm Standard Height or As your request

Thickness: 1.2/1.5/2.0mm thickness optional


Standard Accesspries:
Spare tire carrier*2
LED light

Electricity
Receptacle: 7 ways(7wire harness)and quick change type
Voltage: 24v
